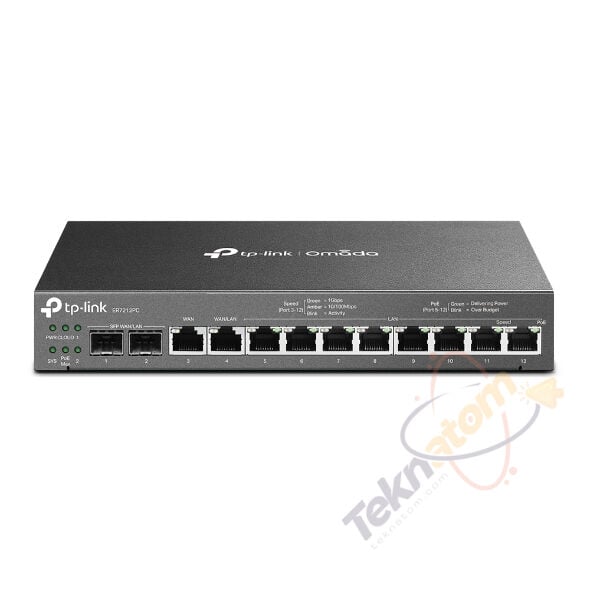

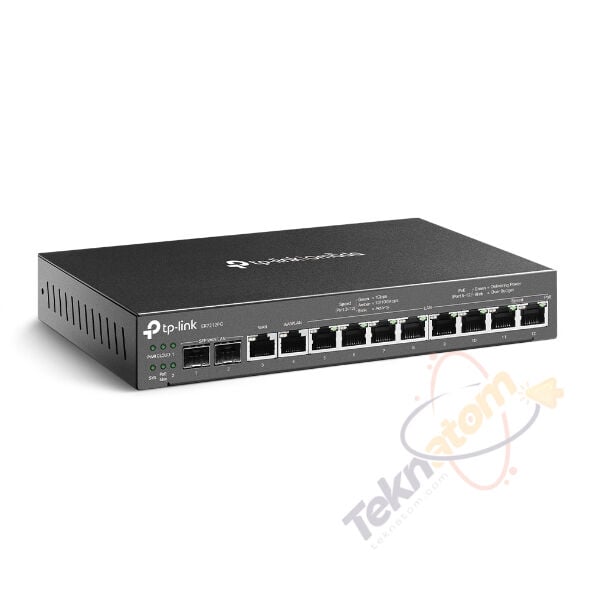

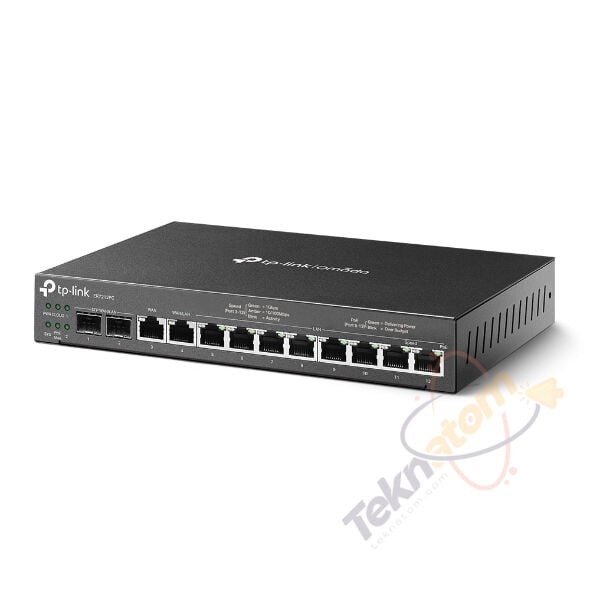

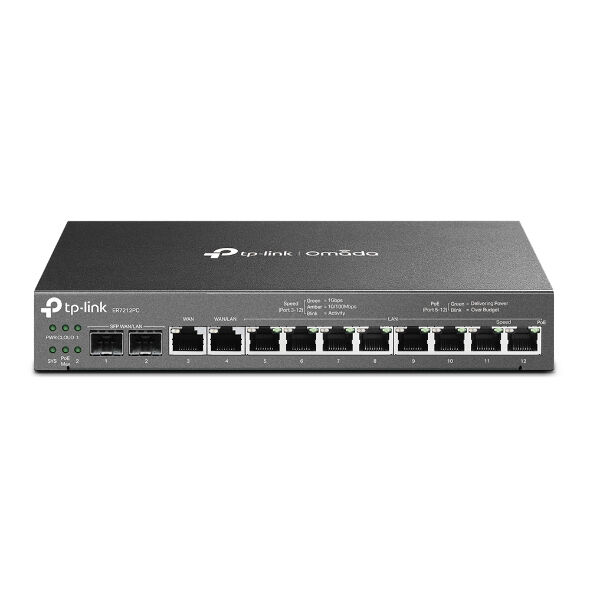

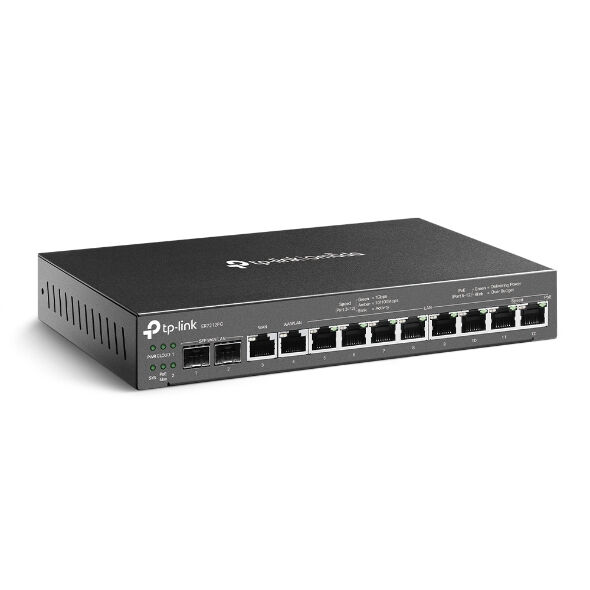

ER7212PC Omada 3'ü 1 Arada Gigabit VPN Router 3'ü 1 Arada Router: Router, PoE+ çıkışı ve Omada merkezi yönetim özelliğini bir araya getirir. 10 adede kadar EAP merkezi olarak yönetilebilir. Profesyonel Donanım: 1GB DDR3 belleğe sahip Çift Çekirdekli CPU, 12× Gigabit bağlantı noktasına kadar mükemmel performans sağlar. 4×'e kadar WAN Ethernet Bağlantı Noktası: 2× Gigabit SFP WAN/LAN portu**, 1× Gigabit RJ45 WAN portu ve 1× Gigabit RJ45 WAN/LAN portu ile donatılmıştır. 110W PoE Bütçesi: 8 × 802.3at/af uyumlu PoE+ RJ45 LAN bağlantı noktaları toplam 110W* güç kaynağı sağlar. Merkezi Yönetim: Bulut erişimi ve Omada uygulaması, büyük bir konfor ve kolay yönetim sunar. Yüksek Güvenlikli VPN:   IPsec VPN, OpenVPN ve L2TP/PPTP VPN bağlantılarını destekler. Kolay Kurulum: Masaüstü ve duvar montajı için fansız ve kompakt tasarım. Omada Cloud SDN hakkında daha fazla bilgi edinin>       GÜVENLİK Access Control Source/Destination IP Based Access Control Filtreleme URL Filtering ARP Denetleme - Saldırı Koruması • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN DONANIM ÖZELLİKLERİ Standartlar ve Protokoller • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP   Arabirim • 2 Gigabit SFP WAN/LAN ports • 1 Gigabit WAN port • 1 Gigabit LAN/WAN port • 8 Gigabit LAN ports Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) Fan Sayısı Fanless Buton Reset Button Güç Kaynağı 53.5VDC/2.43A Adapter PoE Budget 8 ports PoE+ output, 110 W PoE Budget Flash 8Mb Nor + 4 GB EMMC DRAM 1 GB DDR3 LED PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act) Boyutlar ( W X D X H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)   Koruma 4 kV surge protection Muhafaza Steel Montaj Desktop/Wall-mount Maks. Güç Tüketimi • 133.2W with PoE Max • 13.88W without PoE   PERFORMANS Eşzamanlı Oturum 24,980 New Sessions /Second 1,900 NAT (Static IP) 935.5 Mbps / 942.1 Mbps NAT(DHCP) 940.2 Mbps / 941.7 Mbps NAT(PPPoE) 913.1 Mbps / 935.2 Mbps NAT (L2TP) 545.0 Mbps / 912.7 Mbps NAT (PPTP) 523.0 Mbps / 912.8 Mbps IPsec VPN Throughput AES256: 168.5 Mbps OpenVPN 34 Mbps L2TP VPN Throughput • Unencrypted: 845.3 Mbps • Encrypted: 333.2 Mbps PPTP VPN Throughput • Unencrypted: 1012.6 Mbps • Encrypted: 401.4 Mbps 66 Byte Packet forwarding rate 154,069 pps / 156,977 pps 1,518 Byte Packet forwarding rate 81,193 pps / 81,193 pps TEMEL FOKSİYONLAR WAN Bağlantı Türü • Static IP • Dynamic IP • PPPoE • PPTP • L2TP MAC Klon Modify WAN MAC Address DHCP • DHCP Server • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP IPv6 support VLAN 802.1Q VLAN IPTV IGMP v2/v3 Proxy GELİŞMİŞ FONKSİYONLAR ACL IP/Port/Protocol/Domain Name Filtering Gelişmiş Yönlendirme • Static Routing • Policy Routing Bandwidth Kontrol IP/Port-based Bandwidth Control   Load Balance • Intelligent Load Balance • Application Optimized Routing • Link Backup • Online Detection NAT • Multi-Net NAT • Virtual Server • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP   Session Limit IP-based Session Limit VPN SSL VPN - IPsec VPN • 20 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • SHA1, SHA2 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) PPTP VPN • PPTP VPN Server • PPTP VPN Client (10)§ • 16 Tunnels • PPTP with MPPE Encryption L2TP VPN • L2TP VPN Server • L2TP VPN Client (10)§ • 16 Tunnels • L2TP over IPSec OpenVPN • OpenVPN Server • OpenVPN Client (10)§ • 16 OpenVPN Tunnels AUTHENTICATION Web Authentication • No Authentication • Simple Password • Hotspot (Local User / Voucher / SMS / Radius) • External Radius Sever • External Portal Sever   YÖNETİM Omada App Yes Centralized Management Management of up to 2 Omada switches, and 10 Omada access points Cloud Access Yes Servis Dynamic DNS (Dyndns, No-IP) Bakım • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Syslog Support Zero-Touch Provisioning - Management Features • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • Management of up to 2 Omada switches and 10 Omada access points DİĞERLERİ Sertifika CE, FCC, RoHS Paket İçeriği • ER7212PC • Power Adapter • Power Cord • Quick Installation Guide Sistem Gereksinimleri • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 • MAC OS, NetWare, UNIX or Linux Ortam • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing Ek sürüm bilgisi için lütfen destek sayfasına gidin.
