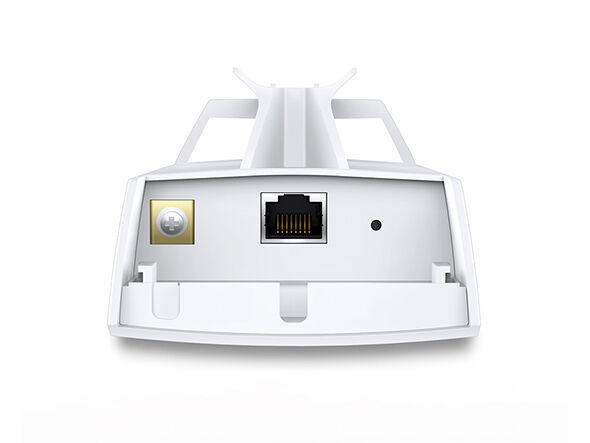

CPE510 5GHz 300Mbps 13dBi Dış Mekan CPE Yerleşik 13dBi 2x2 çift polarizasyonlu yönlü MIMO anteni 0 ile 23dBm/200mw arasında ayarlanabilir iletim gücü 15km üzerinde kapsama alanlı kablosuz ağ iletimi için sistem düzeyinde optimizasyon Ürün performansını, kapasitesini ve gecikme süresi performansını yükselten, PTMP uygulamaları için ideal TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access; Zaman Bölmeli Çoklu Erişim) teknolojisi Merkezi Yönetim Sistemi – Pharos Control AP / Client / AP Router / AP Client Router (WISP) çalışma modları 60 metreye (200 feet) kadar Ethernet Üzerinden Güç uygulamasını destekleyen ve cihazın uzaktan sıfırlanmasına olanak veren Pasif PoE Adaptörü   Kolay kurulum için buraya tıklayınız! www.kolaykurulum.net     DONANIM ÖZELLİKLERİ İşlemci Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc Bellek 64MB DDR2 RAM, 8MB Flash Arabirim 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 Grounding Terminal 1 Reset Button Güç Kaynağı Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC Güç Tüketimi 10.5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. Boyutlar ( W X D X H ) 224 x 79 x 60 mm Anten Built-in 13dBi 2x2 Dual-polarized Directional Antenna Beam Width: 45° (H-Plane) / 30° (E-Plane) Note: For more details, please refer to datasheet Koruma 15KV ESD Protection 6000V Lightning Protection Muhafaza Outdoor ASA stabilized plastic material IPX5 waterproof Certification KABLOSUZ ÖZELLİKLERİ Kablosuz Standartlar IEEE 802.11a/n (with Pharos MAXtream disabled) Tescilli Protokol TDMA Mode (with Pharos MAXtream enabled) Kablosuz Hızı Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) Frekans 5.15~5.85GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. İletim Gücü 23dBm/200mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. YAZILIM ÖZELLİKLERİ Kablosuz Konfigürasyonlar Pharos MAXtream TDMA Technology 802.11a/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Yönetim Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server Sistem Araçları Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute Sistem Düzeyindeki Optimizasyonlar Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog POE ADAPTÖR ÖZELLİKLERİ Boyutlar (H X W X D) 110*57*33.5mm Arayüzler 1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data) Buton Remote Reset Button Güç Durum LEDleri Green   Giriş 100-240VAC, 50/60Hz Çıkış 24VDC, 1A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) Verimlilik >80% Sertifikalar CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark DİĞERLERİ Sertifika CE, FCC, RoHS, IPX5 Paket İçeriği Outdoor Wireless CPE 24V 1A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide Sistem Gereksinimleri Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. Ortam Operating Temperature: -30°C~70°C (-22?~158?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing Ek sürüm bilgisi için lütfen destek sayfasına gidin.
