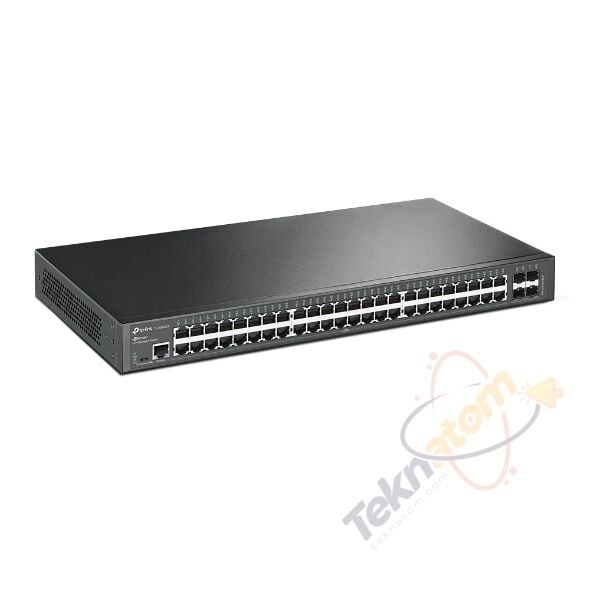

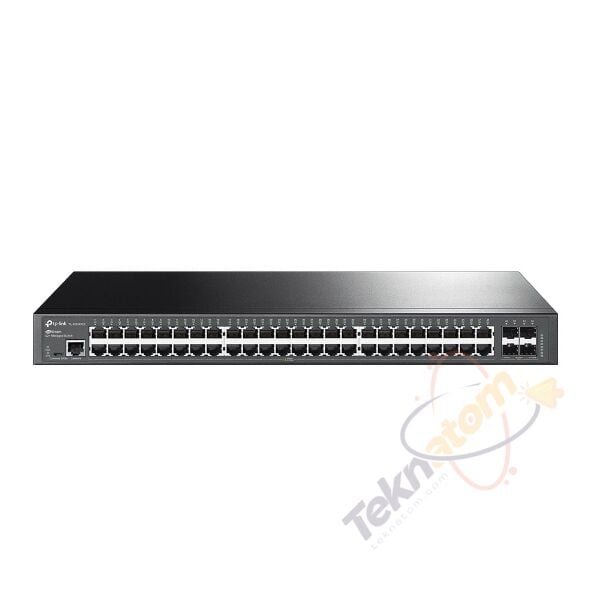

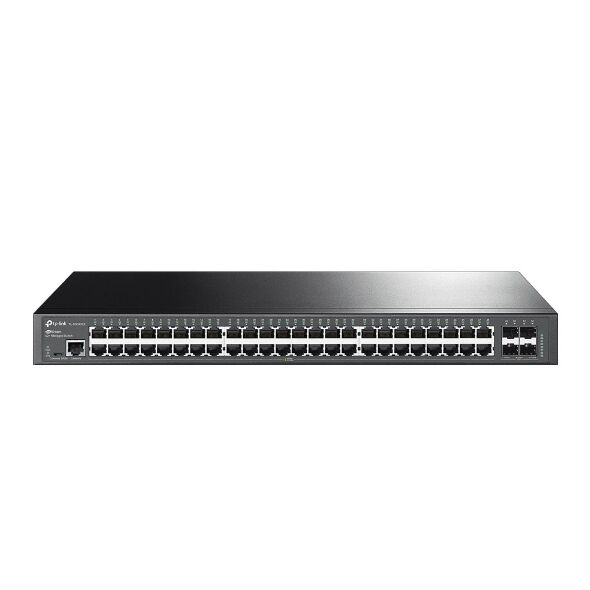

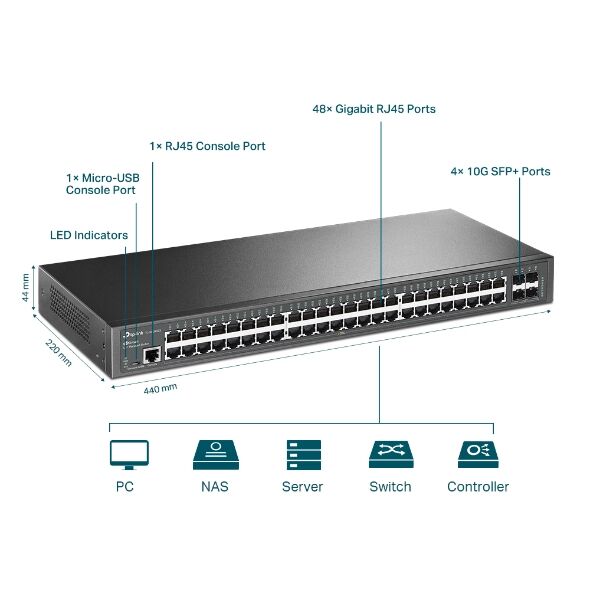

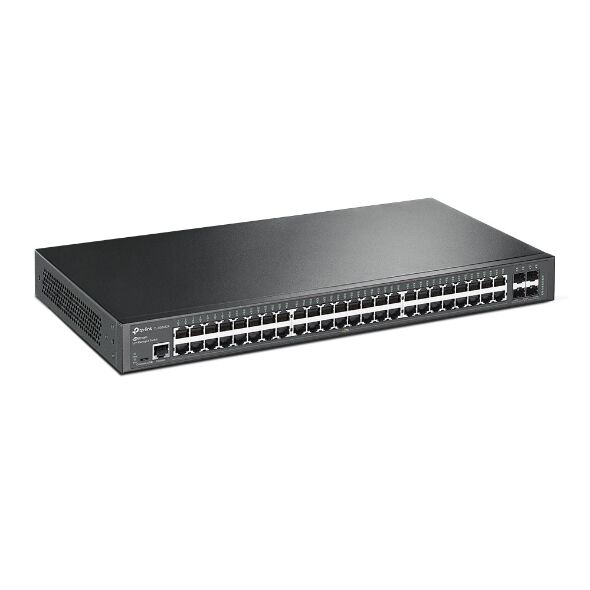

TL-SG3452X JetStream 48-Port Gigabit L2+ 4 10GE SFP+ Yuvalı Yönetilen Switch 10G Yıldırım Hızında Uplink: 4 × 10 Gbps SFP + yuvaları, yüksek bant genişliğinde bağlantı ve engelleme olmayan anahtarlama kapasitesi sağlar. Gigabit Hızları: 48 × gigabit RJ45 bağlantı noktaları, diğer switch'lere ve cihazlara yüksek hızlı ve güvenilir bağlantılar sunar. Omada SDN'ye Entegre Edilmiştir: Zero-Touch Provisioning (ZTP) * , Merkezi Bulut Yönetimi ve Akıllı İzleme. Merkezi Yönetim: Ultra rahatlık ve kolay yönetim için bulut erişimi ve Omada uygulaması. Statik Yönlendirme: Ağ kaynaklarının daha verimli kullanılması için dahili trafiğin yönlendirilmesine yardımcı olur. Sağlam Güvenlik Stratejileri:  IP-MAC-Port Bağlama, ACL, Port Güvenliği, DoS Savunma, Dalga kontrolü, DHCP Gözetleme, 802.1X, Radius Kimlik Doğrulama ve daha fazlası. Ses ve Video Uygulamalarını Optimize Edin:  L2/L3/L4 QoS ve IGMP gözetleme. Bağımsız Yönetim:  Web, CLI (Konsol Portu, Telnet, SSH), SNMP, RMON ve Çift Görüntü güçlü yönetim yetenekleri sunar Omada Cloud SDN hakkında daha fazla bilgi edinin> TP-Link 10G Multi-Gig teknolojisi hakkında daha fazla bilgi edinin >     DONANIM ÖZELLİKLERİ Arabirim • 48× 10/100/1000 Mbps RJ45 Ports • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port Fan Sayısı Fanless Güç Kaynağı 100-240 V AC~50/60 Hz Boyutlar ( W X D X H ) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) Montaj Rack Mountable Maks. Güç Tüketimi 32.72 W (110V/60Hz) Max Heat Dissipation 111.65 BTU/h (110 V/60 Hz) PERFORMANS Anahtarlama Kapasitesi 176 Gbps Paket Yönlendirme Hızı 130.9 Mpps MAC Adres Tablosu 16 K Paket Buffer Belleği 12 Mbit Jumbo Frame 9 KB YAZILIM ÖZELLİKLERİ Quality of Service • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark L3 Özellikleri • 128 IPv4/IPv6 Interfaces • Static Routing - 48 static routes • Static ARP - 128 Static Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay L2 ve L2+ Özellikleri • Link Aggregation - static link aggregation - 802.3ad LACP - Up to 8 aggregation groups, containing 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, Root Protect • Loopback Detection - Port based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both L2 Multicast • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • MVR • Multicast Filtering: 256 profiles and 16 entries per profile Gelişmiş Özellikler • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule VLAN • VLAN Group - Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • Private VLAN • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLAN Erişim Kontrol Listesi • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL -Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLAN Güvenlik • IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - IPv6 Source Guard: 100 Entries • DoS Defend • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication andaccountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control IPv6 • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP MIBs • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB YÖNETİM Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller. Management Features • Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3 - Trap/Inform - RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log DİĞERLERİ Sertifika CE, FCC, RoHS Paket İçeriği • TL-SG3452X Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet Sistem Gereksinimleri Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. Ortam • Operating Temperature: 0–45 ? (32–113 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing Ek sürüm bilgisi için lütfen destek sayfasına gidin.
