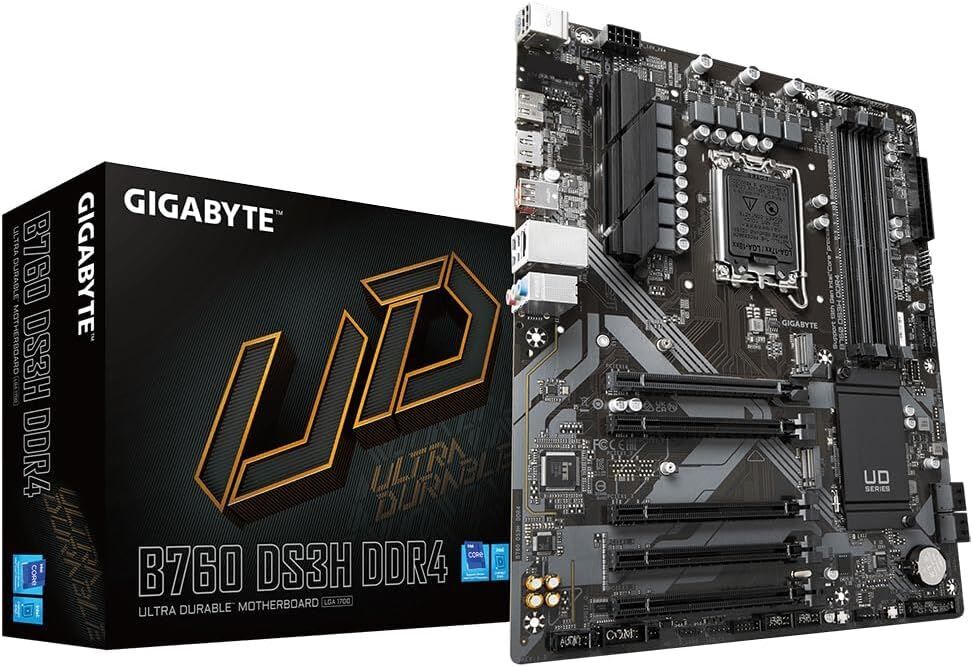

Teknik Bilgiler İşlemci Soket Tipi 1700 Chip Set Intel B760 Ram Slot Sayısı 4 Adet Max Ram Desteği 128GB RAM Tipi DDR4 Ram Frekans Hızı 4266 MHz,4300 MHz,4400 MHz,4500 MHz,4600 MHz,4700 Mhz,4800 MHz,4933 MHz,4133 MHz,3666 MHz,5000 MHz,2400 MHz,3800 MHz,5133 MHz,3866 MHz,2133 MHz,3600 MHz,2666 MHz,2933 MHz,3000 MHz,3200 MHz,3300 MHz,3333 MHz,5333 MHz,3400 MHz,3466 MHz,4000 MHz İşlemci Desteği Intel Core i7,Intel Core i9,Intel Celeron,Intel Pentium,Intel Core i3,Intel Core i5 Anakart Boyutu Micro ATX USB 3.2 5 Adet USB 3.1 Yok USB 3.0 Yok USB 2.0 4 Adet eSata Yok Bluetooth Yok PCI Express 4.0 x16 1 Adet PCI Express 3.0 x16 1 Adet PCI Express 2.0 x16 Yok PCI Express x16 1 Adet PCI Express x1 1 Adet PCI Slot Yok M.2 Slotu 1 Adet Sata 6Gb/s 4 Adet Sata 3Gb/s Yok D-Sub Var DVI Yok HDMI Var DP (Display Port) Yok Lan Hızı 1 Gbit/100 Mbit Lan Çıkış Sayısı 2 Adet Wireless Bağlantı Yok Ses Chip Set Realtek ALC887 Ses Kanal Sayısı 7.1 Kanal Görüş Açısı (Yatay / Dikey) 160/140 Satış Garanti Süresi (ay) 24 EAN 4719331850746 Detaylı Bilgiler Kategori Özellik CPU LGA1700 socket: Support for 12th/13th/14th Gen Intel® Core™, Pentium® Gold, Celeron® L3 cache varies with CPU (Refer "CPU Support List" for details) Chipset Intel® B760 Express Chipset Memory 4 x DDR DIMM sockets, up to 128 GB (32 GB per DIMM) DDR4 5333(O.C.) … 2133 MT/s Dual channel, ECC (non-ECC mode) & non-ECC support XMP support Onboard Graphics Intel® HD Graphics 1 x HDMI 4096x2160@60Hz (HDMI2.1, HDCP2.3) 1 x DisplayPort 4096x2304@60Hz (DP1.2, HDCP2.3) Up to 2 displays simultaneously Audio Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel S/PDIF Out support (*configurable via software) LAN Realtek® GbE LAN (1G/100M) Wireless AMD Wi-Fi 6E RZ608 (BT 5.2), Intel Wi-Fi 6E AX210 & AX211 (BT 5.3), Realtek Wi-Fi 6E RTL8852CE (BT5.3) 2.4/5/6 GHz, 11ax support (*Actual data rate may vary by environment) Expansion Slots CPU: 1 x PCIe x16 (PCIe4.0 x16) Chipset: 4 x PCIe x16 (PCIe3.0 x1) Storage Interface CPU: 1 x M.2 (22110/2280 PCIe4.0 x4/x2) Chipset: 1 x M.2 (2280 PCIe4.0 x4/x2) 4 x SATA6Gb/s, RAID 0/1/5/10 support USB 1 x USB Type-C 3.2 Gen2x2 (back), 1 x USB Type-C 3.2 Gen1 (internal) 1 x USB3.2 Gen2 Type-A (red, back) 2 x USB3.2 Gen1 (internal), 8 x USB2.0/1.1 (back + internal) Internal I/O Connectors 1 x 24-pin ATX, 1 x 8-pin ATX12V CPU/system fan headers & water pump headers 2 x addressable LED, 2 x RGB LED 2 x M.2 Socket 3, 4 x SATA6Gb/s Front panel/audio/S/PDIF headers, USB headers, TPM header, serial port Q-Flash Plus, reset button/jumper, Clear CMOS Back Panel Connectors 1 x PS/2, 2 x SMA antenna, 1 x USB Type-C 3.2 Gen2x2 1 x USB3.2 Gen2 Type-A (red), 4 x USB2.0/1.1 1 x HDMI, 1 x DisplayPort, 1 x RJ-45, 3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage, Temperature, Fan speed, Water flow, Fan fail, Fan speed control (*depends on installed fan/pump) BIOS 1 x 128 Mbit flash, AMI UEFI BIOS, PnP1.0a, DMI2.7, WfM2.0, SMBIOS2.7, ACPI5.0 Unique Features GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus (*features may vary by model) Bundled Software Norton® Internet Security (OEM), LAN bandwidth management software Operating System Windows 11 64-bit, Windows 10 64-bit Form Factor ATX; 30.5cm x 24.4cm Teknik Bilgiler İşlemci Soket Tipi 1700 Chip Set Intel B760 Ram Slot Sayısı 4 Adet Max Ram Desteği 128GB RAM Tipi DDR4 Ram Frekans Hızı 4266 MHz,4300 MHz,4400 MHz,4500 MHz,4600 MHz,4700 Mhz,4800 MHz,4933 MHz,4133 MHz,3666 MHz,5000 MHz,2400 MHz,3800 MHz,5133 MHz,3866 MHz,2133 MHz,3600 MHz,2666 MHz,2933 MHz,3000 MHz,3200 MHz,3300 MHz,3333 MHz,5333 MHz,3400 MHz,3466 MHz,4000 MHz İşlemci Desteği Intel Core i7,Intel Core i9,Intel Celeron,Intel Pentium,Intel Core i3,Intel Core i5 Anakart Boyutu Micro ATX USB 3.2 5 Adet USB 3.1 Yok USB 3.0 Yok USB 2.0 4 Adet eSata Yok Bluetooth Yok PCI Express 4.0 x16 1 Adet PCI Express 3.0 x16 1 Adet PCI Express 2.0 x16 Yok PCI Express x16 1 Adet PCI Express x1 1 Adet PCI Slot Yok M.2 Slotu 1 Adet Sata 6Gb/s 4 Adet Sata 3Gb/s Yok D-Sub Var DVI Yok HDMI Var DP (Display Port) Yok Lan Hızı 1 Gbit/100 Mbit Lan Çıkış Sayısı 2 Adet Wireless Bağlantı Yok Ses Chip Set Realtek ALC887 Ses Kanal Sayısı 7.1 Kanal Görüş Açısı (Yatay / Dikey) 160/140 Satış Garanti Süresi (ay) 24 EAN 4719331850746 Detaylı Bilgiler Kategori Özellik CPU LGA1700 socket: Support for 12th/13th/14th Gen Intel® Core™, Pentium® Gold, Celeron® L3 cache varies with CPU (Refer "CPU Support List" for details) Chipset Intel® B760 Express Chipset Memory 4 x DDR DIMM sockets, up to 128 GB (32 GB per DIMM) DDR4 5333(O.C.) … 2133 MT/s Dual channel, ECC (non-ECC mode) & non-ECC support XMP support Onboard Graphics Intel® HD Graphics 1 x HDMI 4096x2160@60Hz (HDMI2.1, HDCP2.3) 1 x DisplayPort 4096x2304@60Hz (DP1.2, HDCP2.3) Up to 2 displays simultaneously Audio Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel S/PDIF Out support (*configurable via software) LAN Realtek® GbE LAN (1G/100M) Wireless AMD Wi-Fi 6E RZ608 (BT 5.2), Intel Wi-Fi 6E AX210 & AX211 (BT 5.3), Realtek Wi-Fi 6E RTL8852CE (BT5.3) 2.4/5/6 GHz, 11ax support (*Actual data rate may vary by environment) Expansion Slots CPU: 1 x PCIe x16 (PCIe4.0 x16) Chipset: 4 x PCIe x16 (PCIe3.0 x1) Storage Interface CPU: 1 x M.2 (22110/2280 PCIe4.0 x4/x2) Chipset: 1 x M.2 (2280 PCIe4.0 x4/x2) 4 x SATA6Gb/s, RAID 0/1/5/10 support USB 1 x USB Type-C 3.2 Gen2x2 (back), 1 x USB Type-C 3.2 Gen1 (internal) 1 x USB3.2 Gen2 Type-A (red, back) 2 x USB3.2 Gen1 (internal), 8 x USB2.0/1.1 (back + internal) Internal I/O Connectors 1 x 24-pin ATX, 1 x 8-pin ATX12V CPU/system fan headers & water pump headers 2 x addressable LED, 2 x RGB LED 2 x M.2 Socket 3, 4 x SATA6Gb/s Front panel/audio/S/PDIF headers, USB headers, TPM header, serial port Q-Flash Plus, reset button/jumper, Clear CMOS Back Panel Connectors 1 x PS/2, 2 x SMA antenna, 1 x USB Type-C 3.2 Gen2x2 1 x USB3.2 Gen2 Type-A (red), 4 x USB2.0/1.1 1 x HDMI, 1 x DisplayPort, 1 x RJ-45, 3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage, Temperature, Fan speed, Water flow, Fan fail, Fan speed control (*depends on installed fan/pump) BIOS 1 x 128 Mbit flash, AMI UEFI BIOS, PnP1.0a, DMI2.7, WfM2.0, SMBIOS2.7, ACPI5.0 Unique Features GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus (*features may vary by model) Bundled Software Norton® Internet Security (OEM), LAN bandwidth management software Operating System Windows 11 64-bit, Windows 10 64-bit Form Factor ATX; 30.5cm x 24.4cm
